Faac 415 L 230Vac linear screw kit with 400mm stroke for swing gates up to 4m
Faac 415 operators are suitable for residential applications for swing gates up to 4m
- Available in versions with/without a travel limit device
- Available in versions with a 300mm (max-leaf 3m) and 400mm (max-leaf 4m) rod stroke
- Half bodies are coupled with a seal in a pressure cast
- Die-cast aluminium body, entirely double-coat painted for longer life
- Manual release device with simplified key-protected activation
- Travel limit devices (if present) for maximum safety, with facility for controlling travel limit stops and slow-down
- Horizontal exit for cables to allow low installation

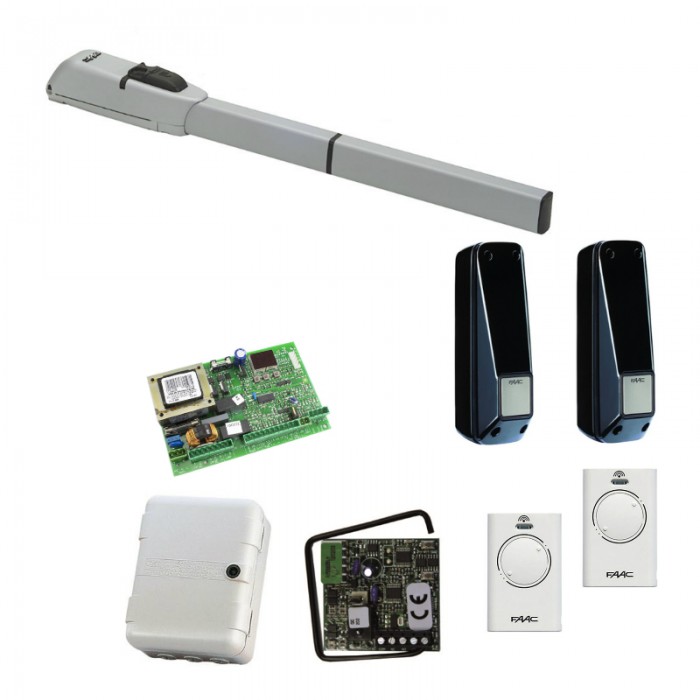

The kit contains:
- 1 or 2 x 415 L Motor
- E145S control board with housing
- Plug-in receiver 868SLH
- Pair of photocell XP20D
- Two-channel transmitter 868SLH
| Technical | |
| IP Rating | 54 |
| Max Gate Leaf Length | 4m |
| Max Speed | 16mm/s |
| Motor Voltage | 230Vac |
| Work Cycle | 25 |
