Faac 400 CBAC 230Vac hydraulic ram kit for swing gates up to 2.2m
Faac 400 hydraulic motors for condominium and industrial swing gate automation. Available in a double and single kit.
- A large, robust operator is suitable for gate leaves from 2.2m up to 7m.
- Maximum anti-crushing safety with an exclusive hydraulic device.
- In case of a power cut, the rotation of the release device above makes it possible to open/close the gate manually.

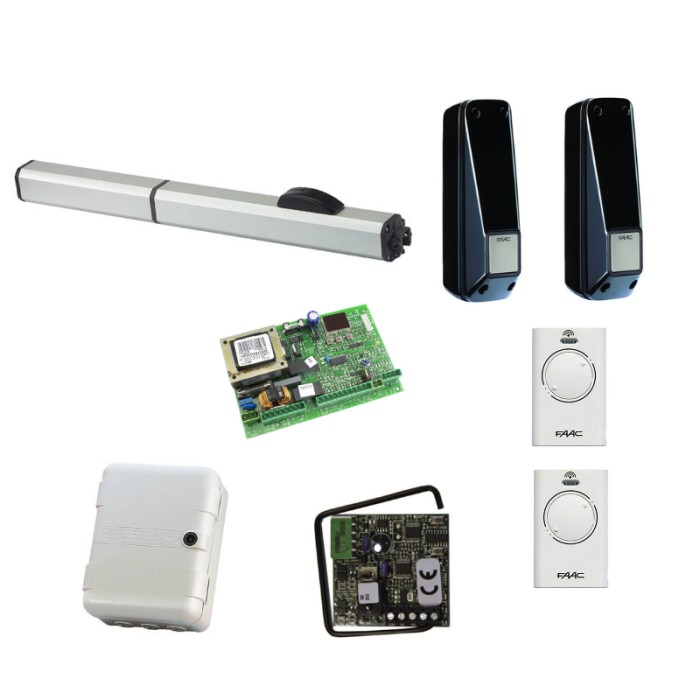

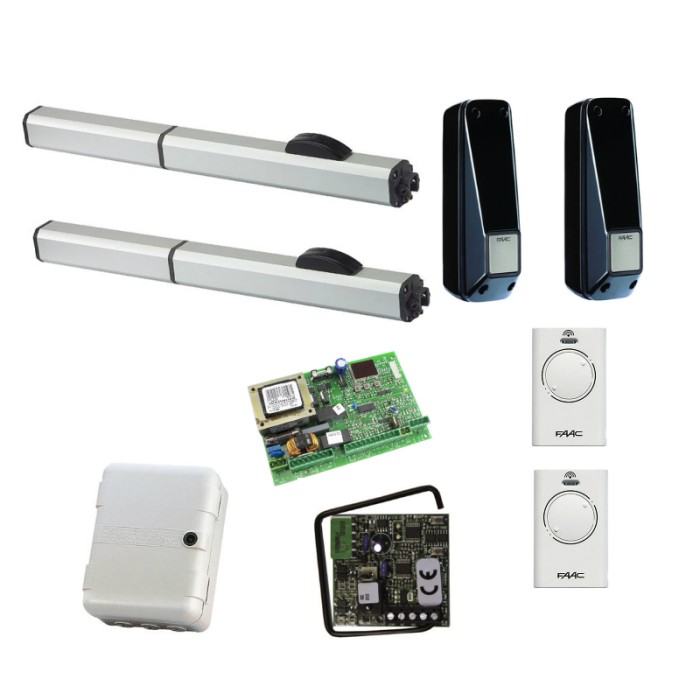

The kit contains:
- 1 or 2 x 400 CBAC hydraulic motor
- 1 x E145S Control board with housing
- 1 x Plug-in receiver/decoder 868 SLH
- 2 x Two channel transmitter
- 1 x Pair of photocells XP20D
| Technical | |
| IP Rating | 55 |
| Max Gate Leaf Length | 2.2m |
| Max Speed | 1.0cm/s |
| Motor Voltage | 230Vac |
